If music be the food of love, play on. But make sure you use this super little DAC to get the best out of your Raspberry Pi audio!

This pHAT provides a super affordable high-quality DAC for your Raspberry Pi. It pumps out 24-bits at 192KHz from the Raspberry Pi's I2S interface on its 2×20 pin GPIO header.

Use pHAT DAC to build a tiny, lush-sounding streaming music device, or use it with Scroll pHAT to make a beautiful spectrum analyser!

Features

24-bit audio at 192KHz
Line out stereo jack
Optional landing for dual RCA phono connector
PCM5102A DAC over the Raspberry Pi's I2S interface
pHAT DAC pinout
Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W

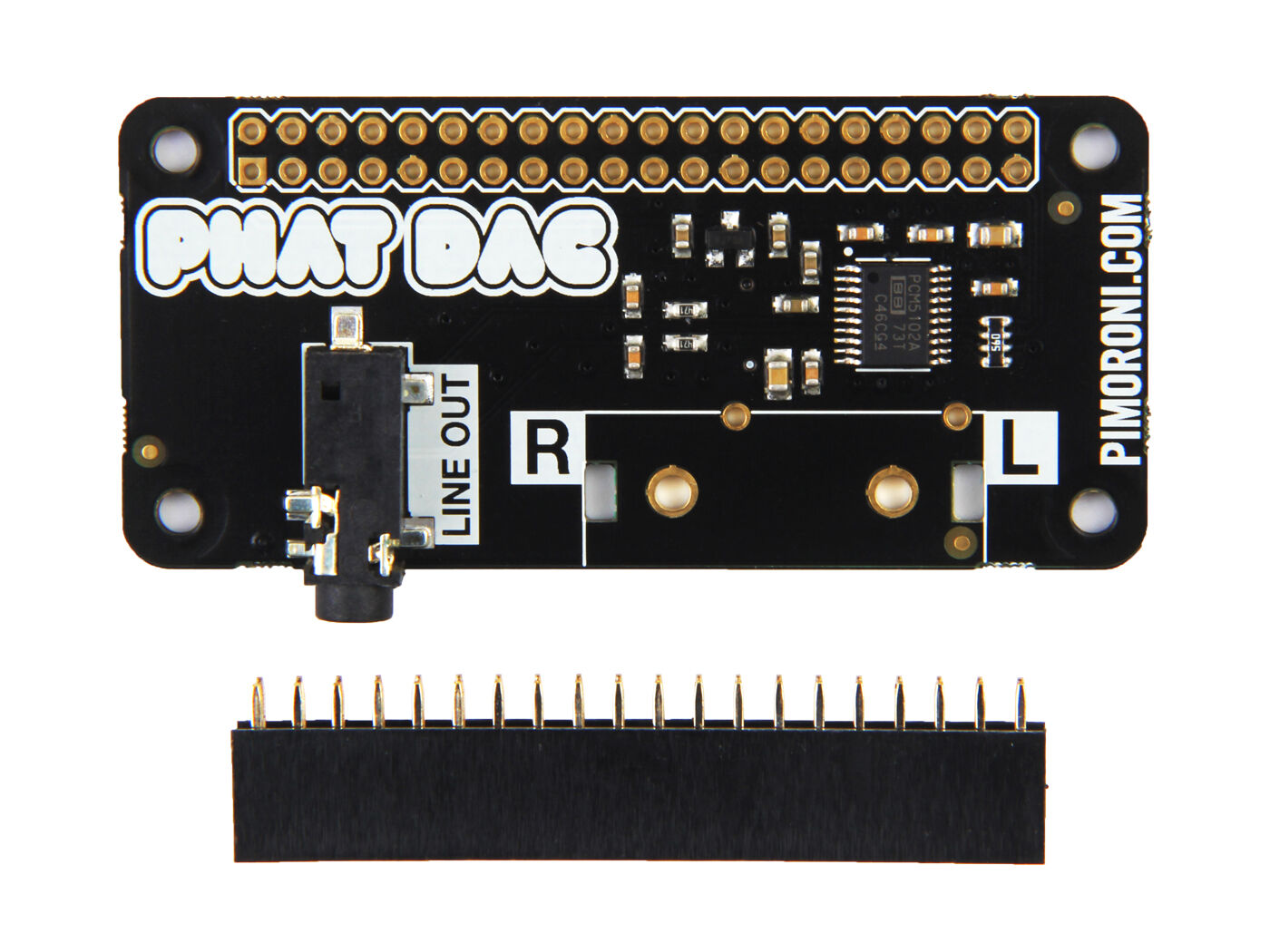

Female header requires soldering

Software

pHAT DAC doesn't require a Python library like most of our other HATs and pHATs, but does require configuration to work properly. We've put together a slick one-line installer to get everything set up just right. See the tutorial below for more details.

Our software does not support Raspbian Wheezy.
