Features

Perfect connector match with RF Explorer high-performance antennas and SenseCAP M1 Indoor Gateway
Low insertion loss: Typical 0.45db @ 900MHz
Low VSWR: Typical 1.1 @ 900MHz
Robust construction for outdoor usage: Tinned copper wire for braid material, significantly reduces the interruption.

Description

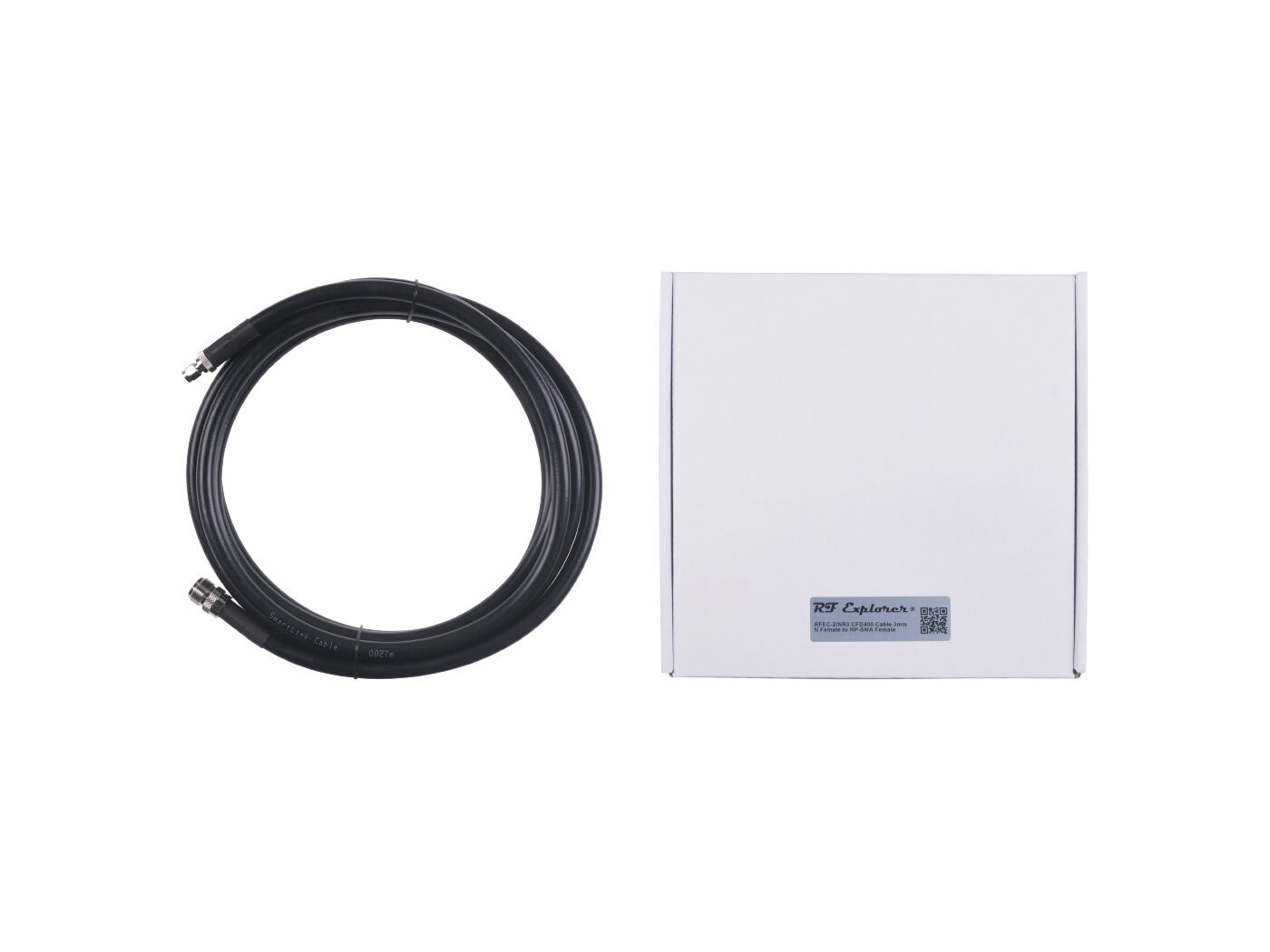

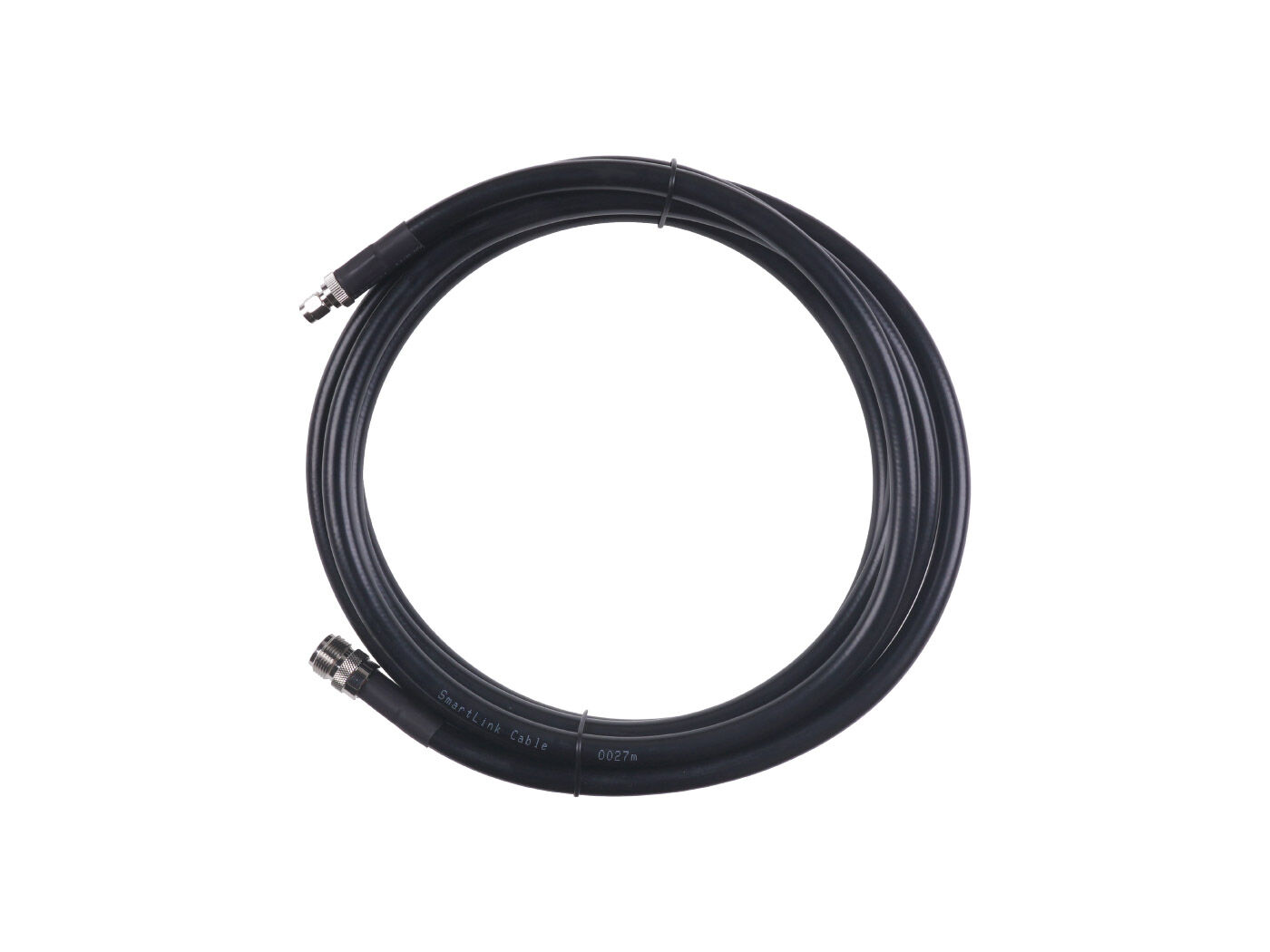

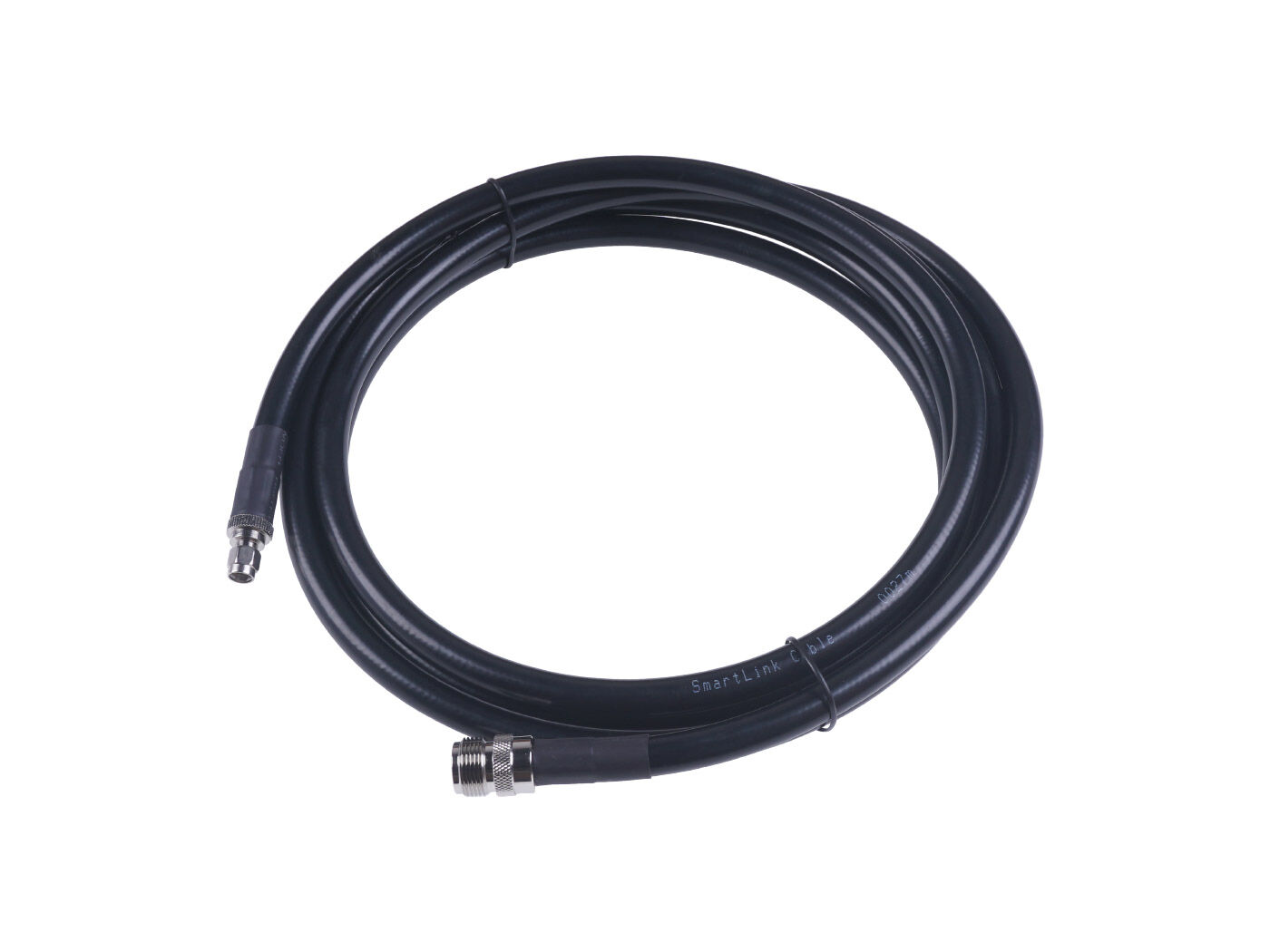

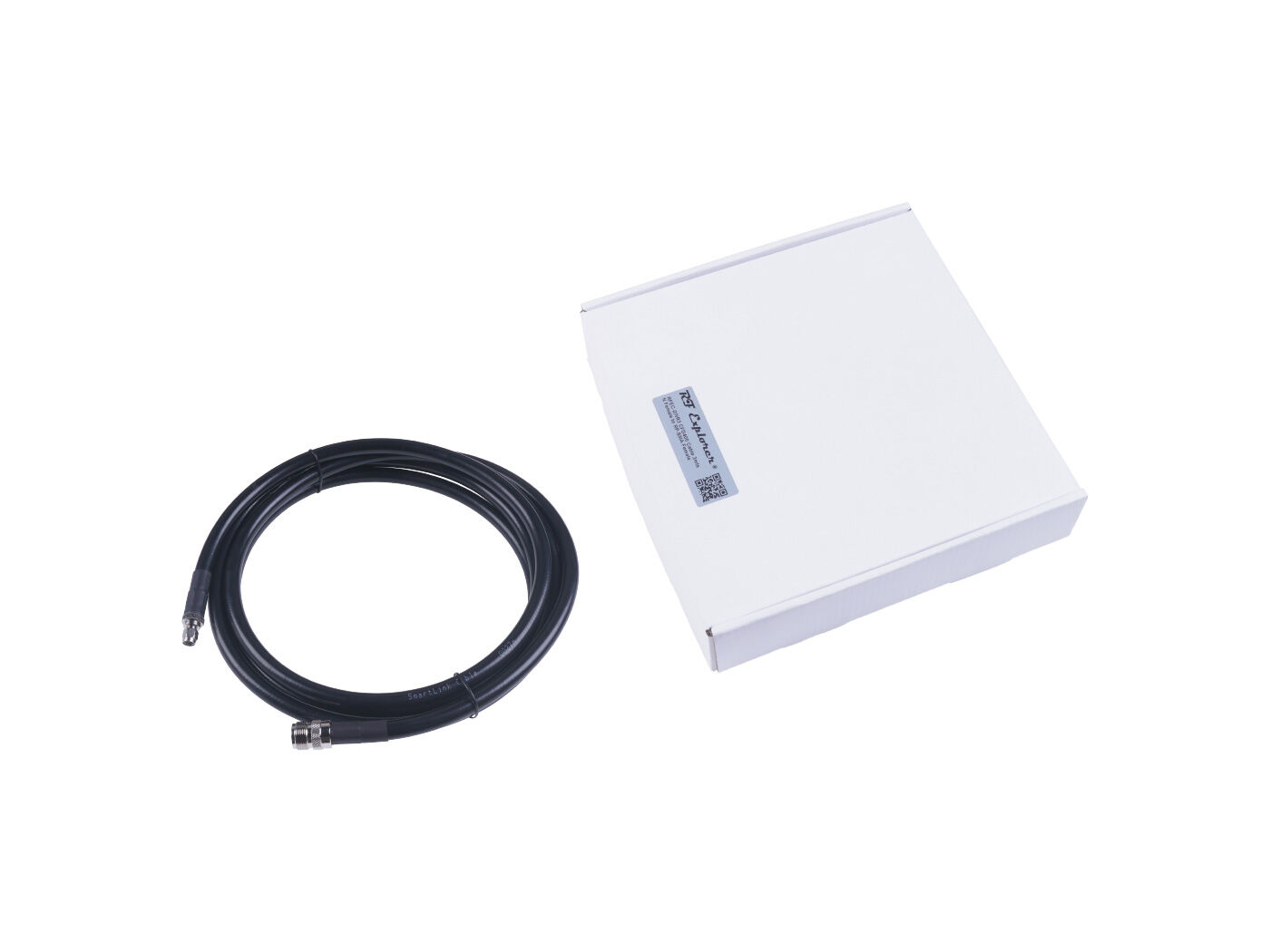

CFD400 is an industrial-grade cable that provides low signal loss, long working expectations, and qualification for outdoor deployment. It is able to connect to an antenna for better coverage and connect to SenseCAP M1 Indoor Gateway and SenseCAP Outdoor Gateway for better data transmission.

Specification

Frequency Range	0-6000MHz
Length	3 meter ±40mm
Impedance	50Ω
VSWR	Typical 1.1 @ 900MHz ≤1.5 max @ 6GHz
Insertion Loss	Typical 0.45db @ 900MHz ≤1.5dB max @ 6GHz
Capacitance	76pF/m
Velocity of Propagation	85%
Connectors	Type N Male/Jack Type RP SMA Male
Insulation Resistance	> 1,000 MΩ
Bend Radius	Min 25.4mm
Voltage Breakdown	2.5KV
External Cable Diameter	10.3mm
Connectors	Type N Female Type RP-SMA Male
Mating Cycles	> 500
Jacket Material	PE
Conductor Material	Copper
Binder Material	Aluminum/PE Tape
Braid Material	Tinned copper wire
Operation Temperature	-30°C to +65°C
Environmental	RoHS
