Açıklama

Features

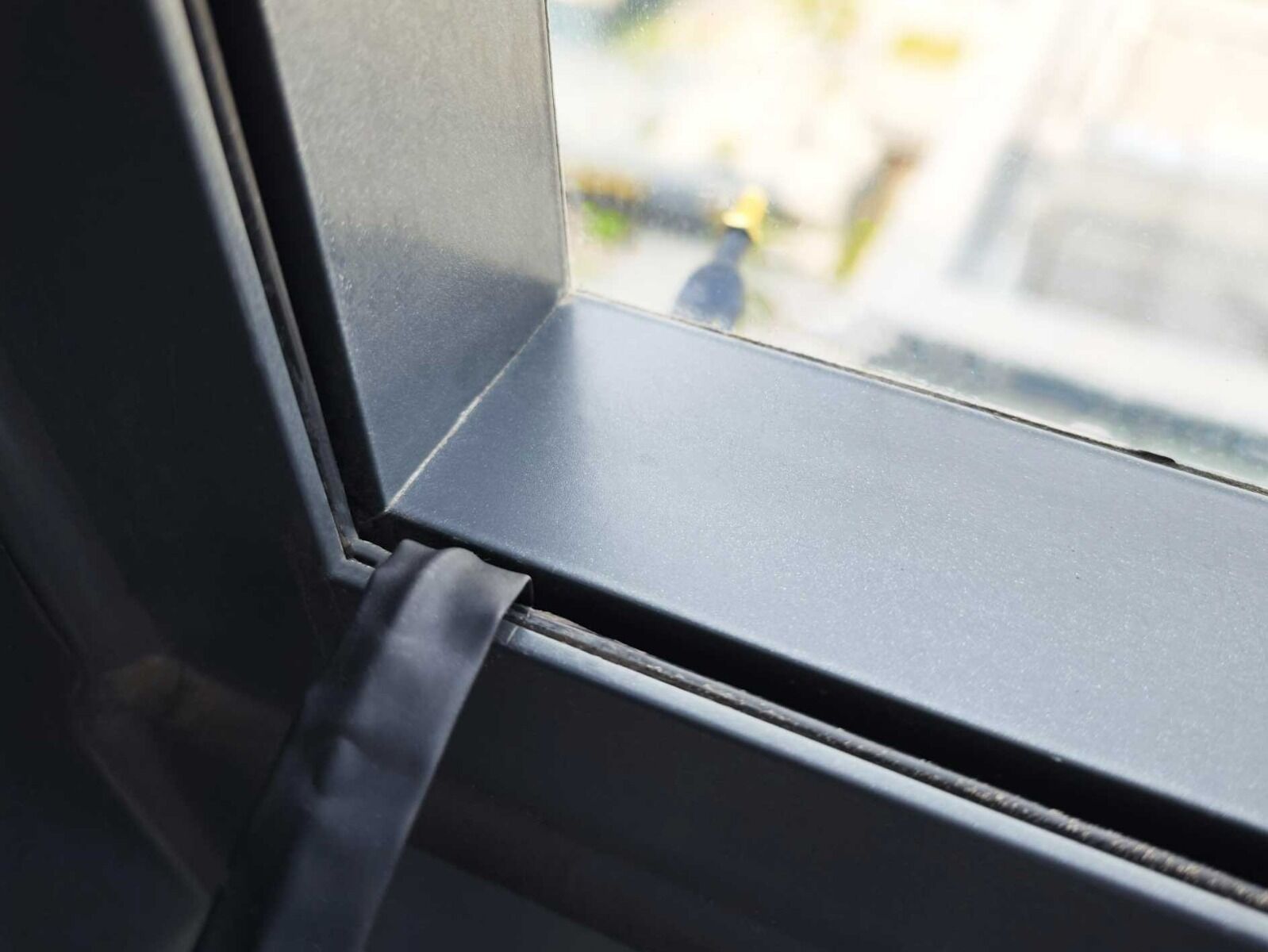

Robust construction for outdoor usage, easy to install through doors and windows
Perfect connector match with RF Explorer high-performance antennas and Helium hotspots
Very low insertion loss

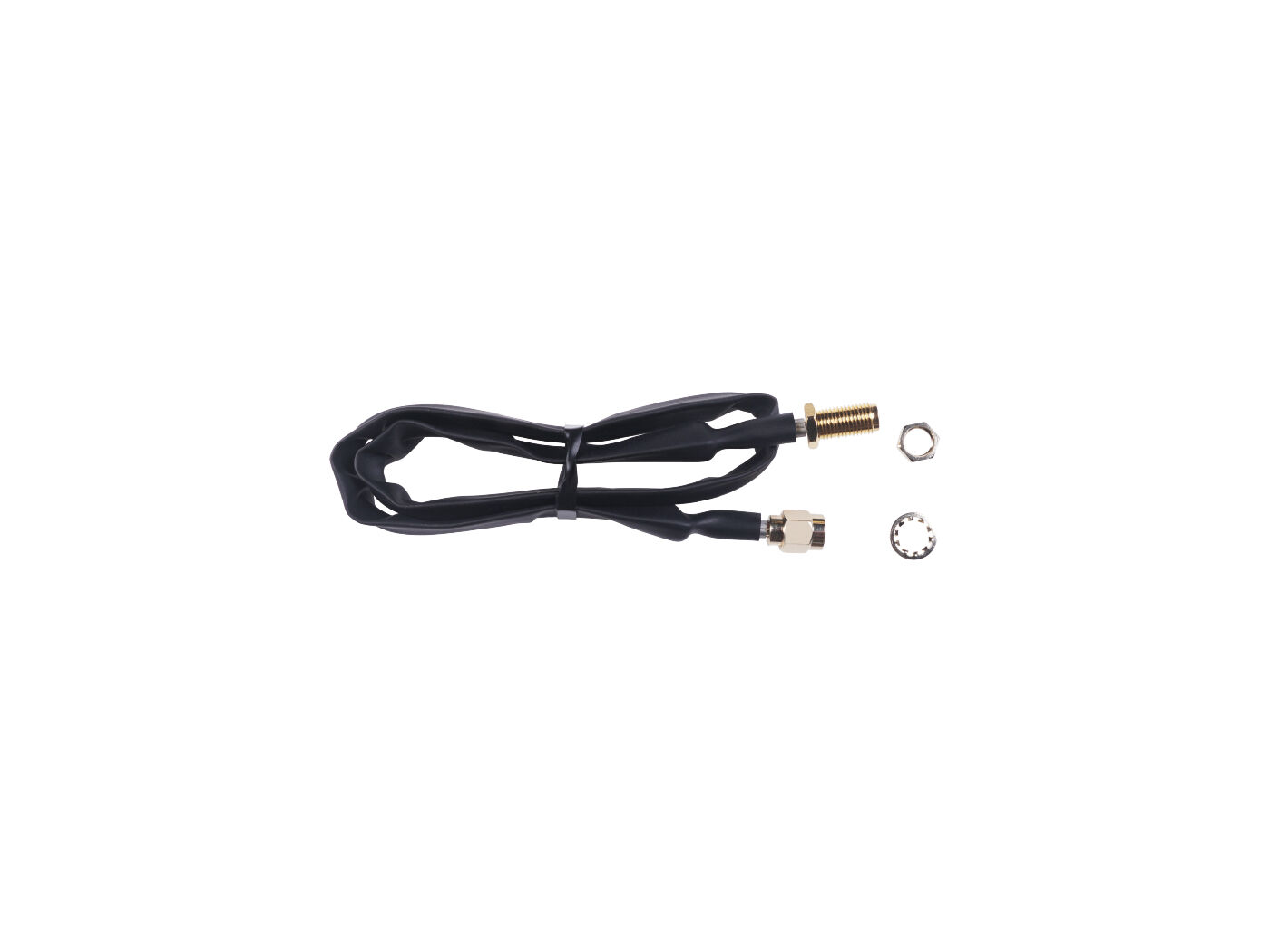

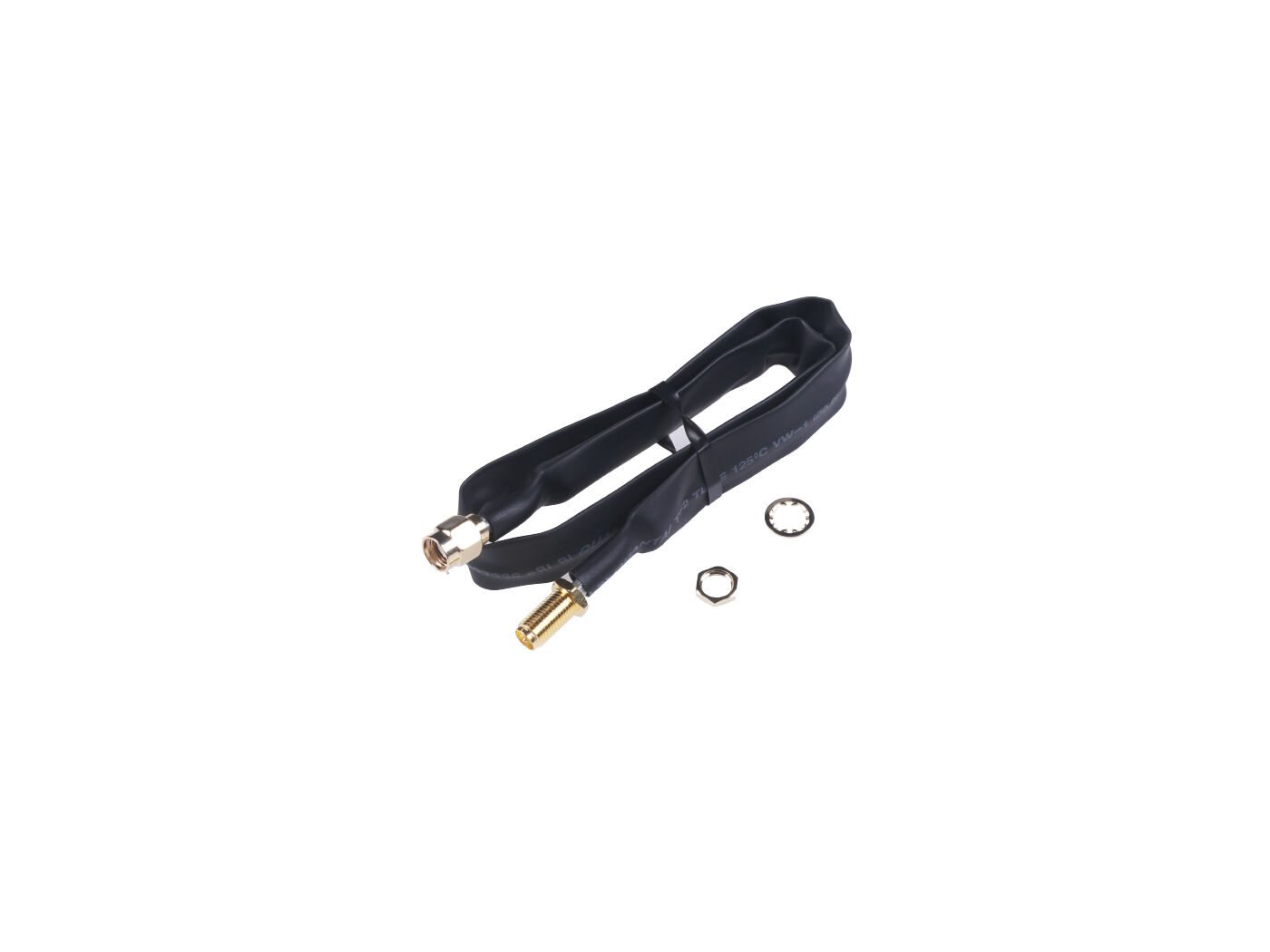

High-quality low loss RG174 flat cable suitable for indoor and outdoor installation. Length 40cm (16”) with connectors RPSMA Female to RPSMA Male.

Fully compatible with technologies, products and services by

Frequency Range	0-3000MHz
Length	400 mm
Impedance	50Ω
VSWR	Typical 1.4 @ 900MHz ≤1.5 max @3GHz
Insertion Loss	Typical 0.45db @ 900MHz
Capacitance	101pF/m
Velocity of Propagation	66%
Connectors	RP SMA Male/Jack RP SMA Female/Plug
Insulation Resistance	>1000MΩ
Pull Test	3Kgf
Bend Radius	Min 8mm
Voltage Breakdown	1KV
External Cable Diameter	2.8mm
Mating Cycles	>300
Jacket Material	PE
Conductor Material	Copper
Shield Material	Tinned copper
Operation Temperature	-30℃ to + 65℃
Environmental	RoHS
