Features

Compact size SoM powerful enough for advanced AI applications with low power consumption
Up to 2.5X the performance of Jetson Nano
Shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier™ NX
Supports the entire NVIDIA Software Stack for application development and optimization
Enables development of AI applications using NVIDIA JetPack™ SDK
Easy to build, deploy, and manage AI at the edge
Flexible and scalable platform to get to market with reduced development costs
Continuous updates over the lifetime of the product

Description

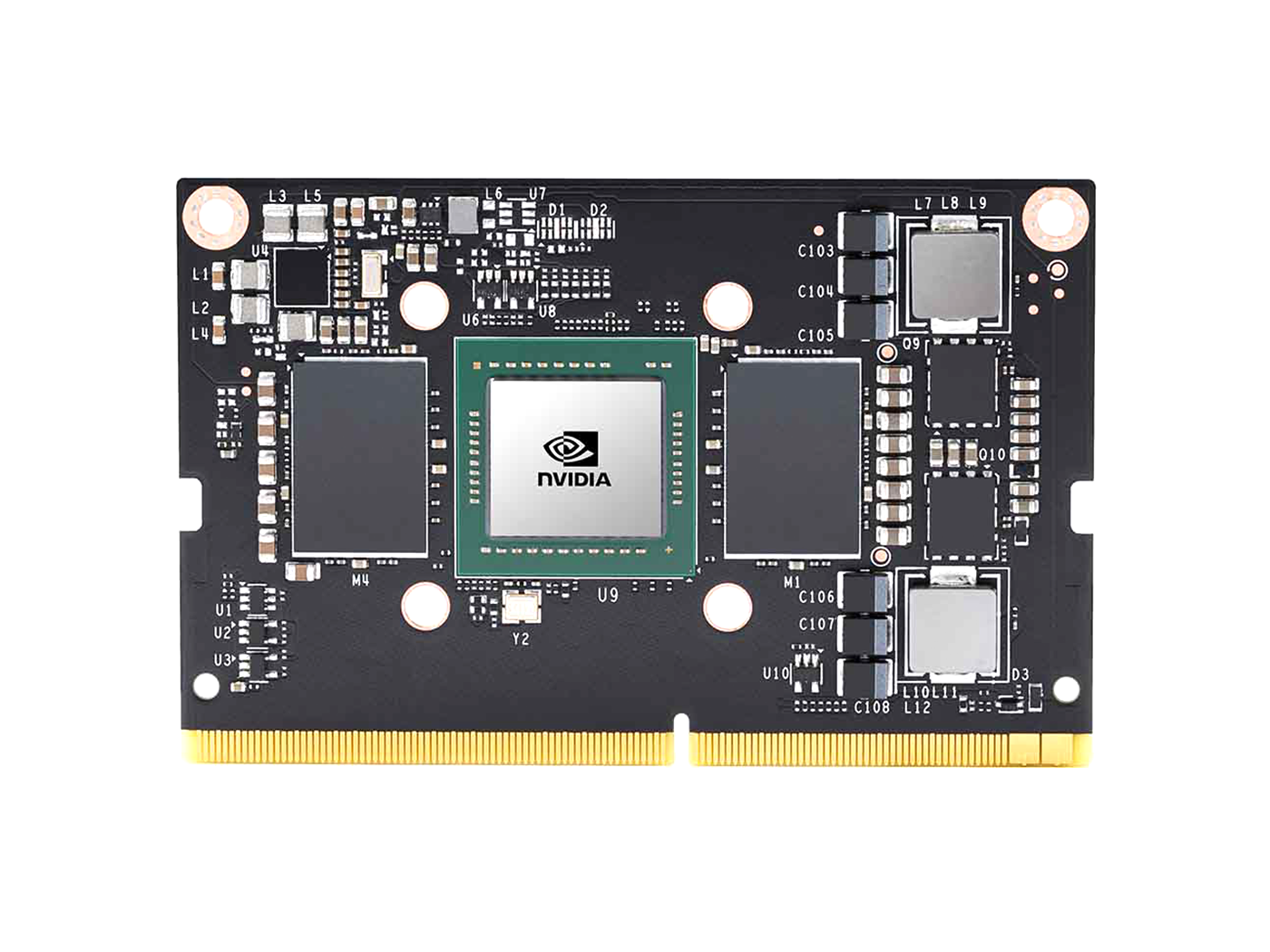

NVIDIA^® Jetson^™ TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides up to 2.5X the performance of Jetson Nano, and shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier^™ NX.

Customization

Seeed Agile ODM Service empowers device makers and integrators with our customizable services tailored to their specific hardware needs, including form factors, image flashing, and logo change.

Comparison Between The NVIDIA Jetson AI Modules

	Jetson Nano	Jetson TX2 NX	Jetson TX2 Series	Jetson Xavier NX	Jetson AGX Xavier Series
AI Performance	0.5 TFLOPS (FP16)	1.33 TFLOPs	1.3 TFLOPS (FP16)	6 TFLOPS (FP16) 21 TOPS (INT8)	5.5-11 TFLOPS (FP16) 20-32 TOPS (INT8)
GPU	128-core NVIDIA Maxwell™ GPU	NVIDIA Pascal™ Architecture GPU with 256 CUDA cores	256-core NVIDIA Pascal™ GPU architecture with 256 NVIDIA CUDA cores	NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores	512-Core Volta GPU with Tensor Cores
CPU	Quad-core ARM A57 @ 1.43 GHz	Dual-Core NVIDIA Denver 2 64-Bit CPU Quad-Core ARM® Cortex®-A57 MPCore processor	Dual-Core NVIDIA Denver 2 64-Bit CPU Quad-Core ARM® Cortex®-A57 MPCore	6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3	8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3
Memory	4 GB 64-bit LPDDR4 25.6 GB/s	4GB 128-bit LPDDR4, 1600 MHz – 51.2 GB/s	8GB 128-bit LPDDR4 1866 MHz – 59.7 GB/s	8 GB 128-bit LPDDR4x @ 51.2GB/s	32 GB 256-Bit LPDDR4x \| 137 GB/s
Power Consumption	5-10W	7.5W / 15W	7.5-15W	10-15W	10-30W
Dimensions	45 x 70mm	45 x 70mm	50 x 87mm	45 x 70mm	100 x 87mm

Specifications

Specification	Details
AI Performance	1.33 TFLOPs
GPU	NVIDIA Pascal™ Architecture GPU with 256 CUDA cores
CPU	Dual-Core NVIDIA Denver 2 64-Bit CPU Quad-Core ARM® Cortex®-A57 MPCore processor
Memory	4GB 128-bit LPDDR4, 1600 MHz – 51.2 GB/s
Storage	16GB eMMC 5.1 Flash Storage
Power	7.5W / 15W
PCIe	1×1 + 1×2 (PCIe Gen2)
CSI Camera	Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.1 (up to 30 Gbps)
Video Encode	1x 4Kp60 3x 4Kp30 4x 1080p60 8x 1080p30 (H.265) 1x 4Kp60 3x 4Kp30 7x 1080p60 14x 1080p30 (H.264)
Video Decode	2x 4Kp60 4x 4Kp30 7x 1080p60 14x 1080p30 (H.265 & H.264)
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1 x2 DSI (1.5Gbps/lane)
Networking	10/100/1000 BASE-T Ethernet
Mechanical	69.6 mm x 45 mm 260-pin SO-DIMM connector
