Açıklama

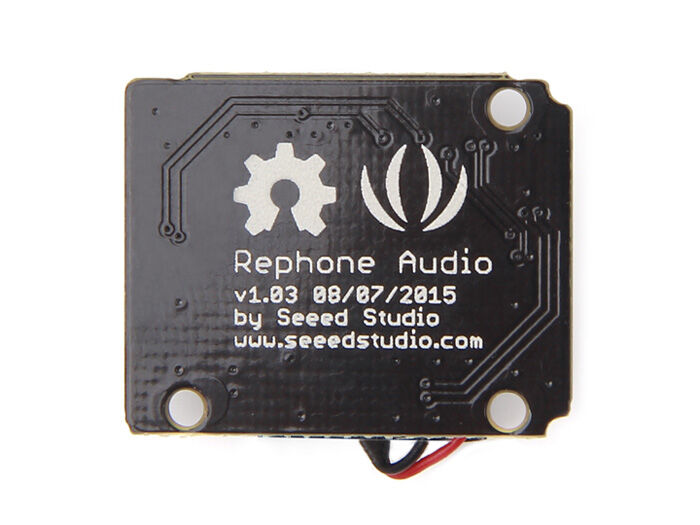

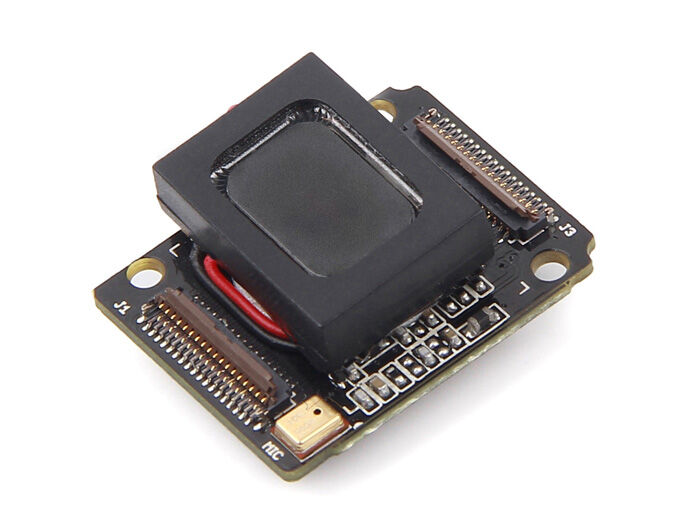

The Xadow Audio integrates a speaker box and a microphone on one single board. The speaker unit is rated at 0.7Watt with an impedance of 8 ohm. Unlike the common cone type speakers, the loudspeaker driver used on the Xadow Audio has a flat surface and is mounted in a rectangular enclosure, which enables it to reproduce sounds at an amazing effect.
Include
-
Xadow Audio *1
-
FPC Cable 35 PIN * 2
Features:
-
Open source and modular design
-
Built-in enclosure for speaker
-
Combines speaker and microphone on one board
-
Built-in Xadow Connectors for easy pluggable FPC cables
-
Stackable and chainable with other Xadow Modules
-
Perfect choice for your audio and DIY Phone projects
Speaker Box:
Resonant Frequency: 900 Hz
Impedance: 8±20% Ω
Rated Power: 0.7 W
MAX. Power: 1 W
Frequency Range: 900 Hz to 20 kHz
Microphone:
Microphone Sensitivity: -42dBV Typ.
Max Input Sound Pressure: 130dB SPL
Dimensions:
Speaker: 13mm X 18mm X 4.5mm / 0.51” X 0.71” X 0.18”
Microphone: 2.95mm X 3.76mm / 0.12” X 0.15”
Board: 25.37mm X 20.30mm / 1’’ X 0.8’’
